You can change a wall into a sloping ceiling after you have drawn it by taking the steps below.
|
Please note: Innoplus versions older than version 12.0.2120: Any editing to the floor plan will remove all windows. Tiles and doors will be removed from the external walls. If you have already placed these building elements you will need to place them again after editing the floor plan. From version 12.0.2120: wall related objects will only be removed if the new wall dimensions do not allow the object to fit in. |
-
Click Build tab in the Menu bar.
-
Click the icon Edit floor plan:
Note: If you have already placed any wall objects, and editing the floor plan affects their placement, they will be automatically removed and require placing again.
-
Click on the wall you want the sloping ceiling to be attached to. When selected, it will be highlighted in green.
-
In the Assistant box to the right, select Change wall.
-
In the Wall settings section below the assistant box, enter the dimensions of the slope.

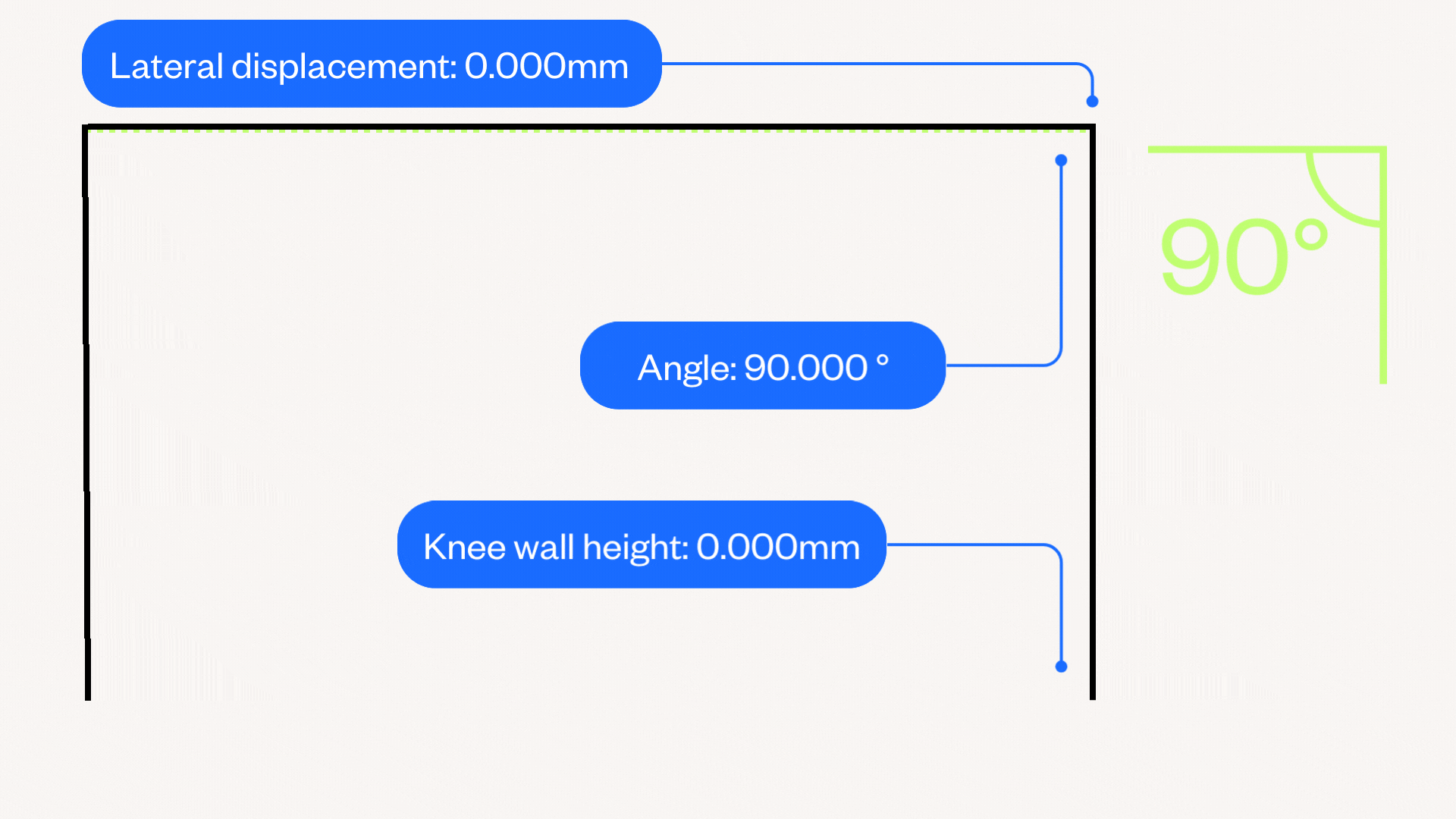

- Depending on what Knee wall height you enter, it will affect the Lateral displacement measurement.
-
You can enter a specific angle or offset, and the Lateral displacement will update to the new measurement.
Knee wall height - the height of the flat piece of wall before the slope starts.
Lateral displacement - how far out the slope goes across the ceiling.
- Depending on what Knee wall height you enter, it will affect the Lateral displacement measurement.
-
Once you have entered the dimensions click Apply.
-
Click Finished in the Assistant box to the right.
- The Edit floor plan window will close, and you can see the finished result in the 3D Plan window.

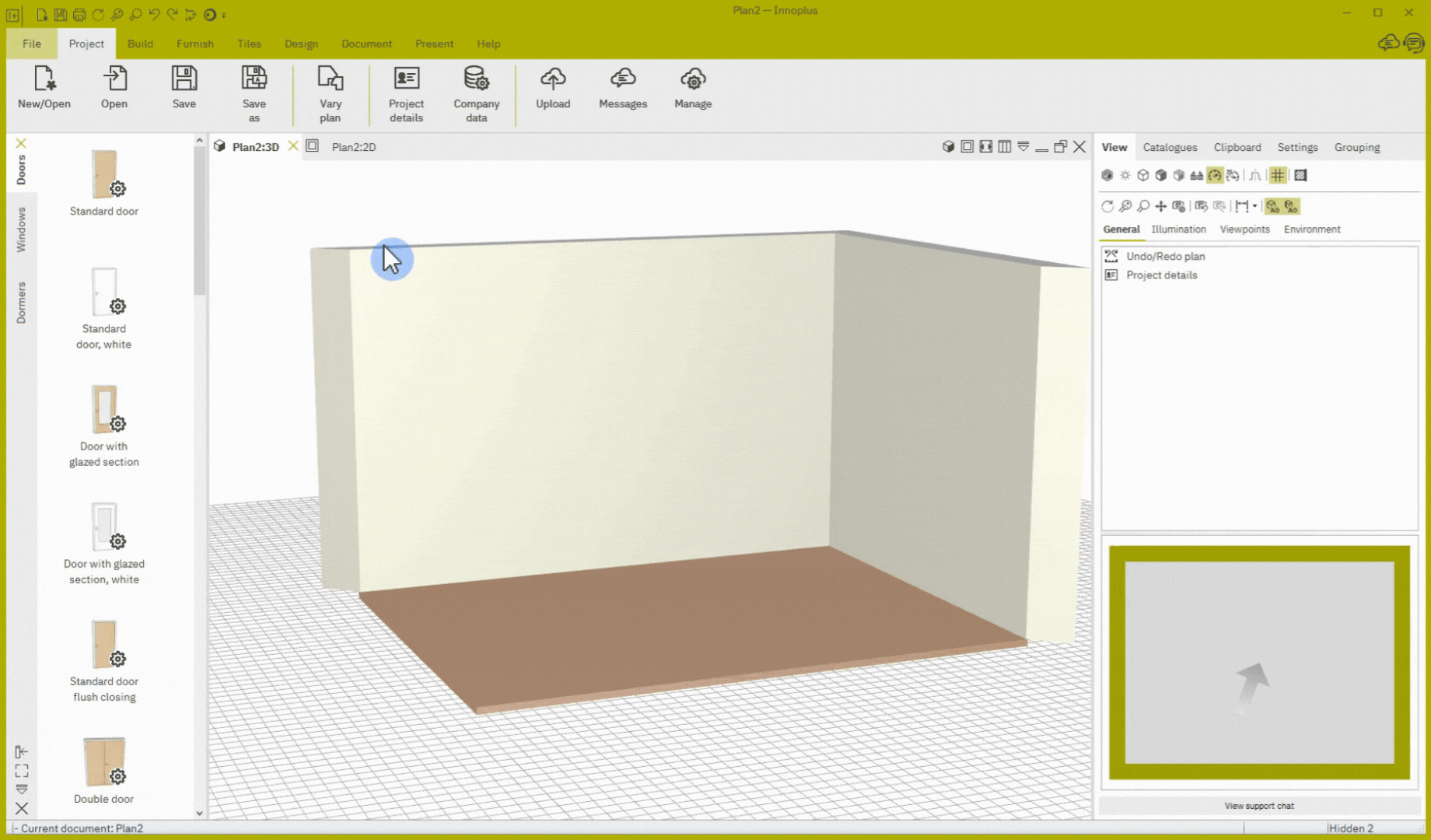

See the gif below of all the steps combined.
