In Innoplus, users can make cuts in a panel to add a Belfast sink, or apron-front sink, to their plan. For example, when placing a washbasin on a base unit, also called a sink or wash basin, users may find the panel passes through the washbasin. The Cut front for basin tool can be used to correct this.
In 3D view, with the base unit in place:
- Select a washbasin and position it in the desired location.
- In the Furnish tab, select the Cut front for basin tool:
- Move the cursor over the panel. The panel will be highlighted in red.
-
Left-click to select the panel.
- Move the cursor over the washbasin. The washbasin will be highlighted in blue.
-
Left-click to select the washbasin.
The panel will now have a cut in the shape of the sink.
Note: If there are two panels, repeat the process.

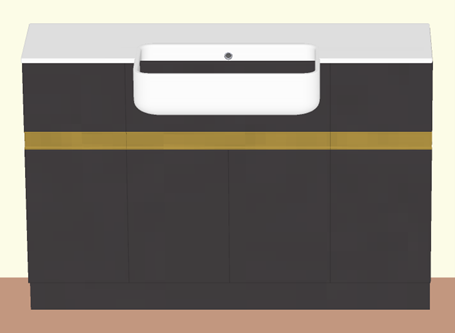

Before:

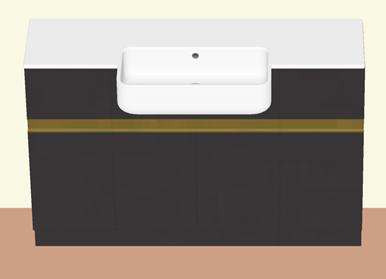

After:
