Innoplus offers the possibility to change any measurements of a room even after the initial setup. There is no need to redraw the whole plan.

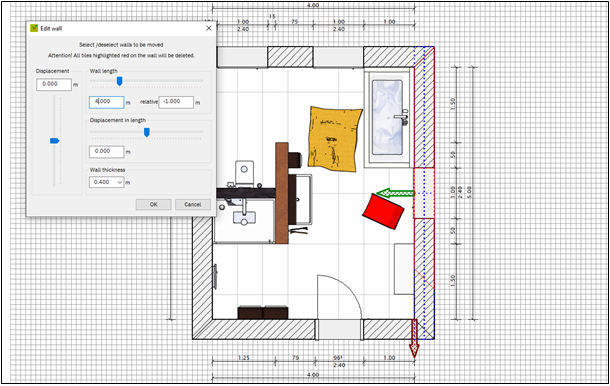

- Click on the first wall and choose Edit wall in the View assistant on the right sight of the screen.
- Hovering the mouse over the wall, two arrows will appear. The green arrow should point to the inside of the room, the red arrow indicates which end of the wall is moved.
- If the arrows’ directions are correct, click the wall again. This opens the Edit wall window.
- Enter the new wall length in the window or specify the relative change of the wall length.
- Repeat the same steps on the opposite wall.
- To close the room again, the adjacent wall needs to be moved. Move the mouse to a place on the wall where the green arrow points into the room. The direction in which the red arrow points is not important for this step. Click on the wall.
- Use the two Displacement slider bars to join the walls together.
- Choose the tab Build on the top, click on the floor and choose Renew floor in the assistant on the right side of the screen to trim the floor to the new room size.
Now the plan fits the correct measurements.
Hint: Some articles may be outside of the room now. Move these articles with drag and drop to their final position within the new room.
