In Innoplus, users can select between several different display modes in which to view their plan.

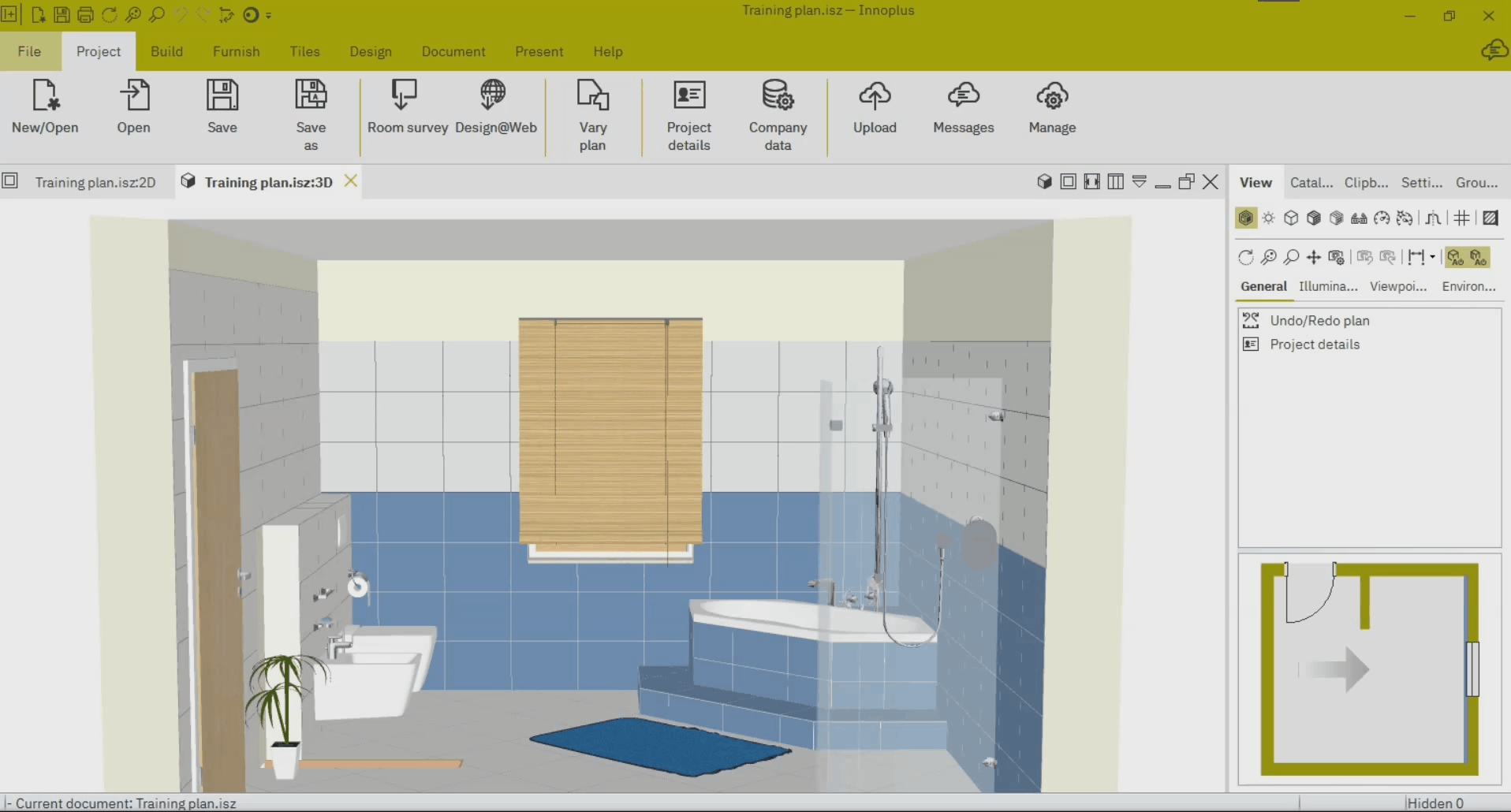

The display modes toolbar is in the Assistant box, located on the right side of the screen:

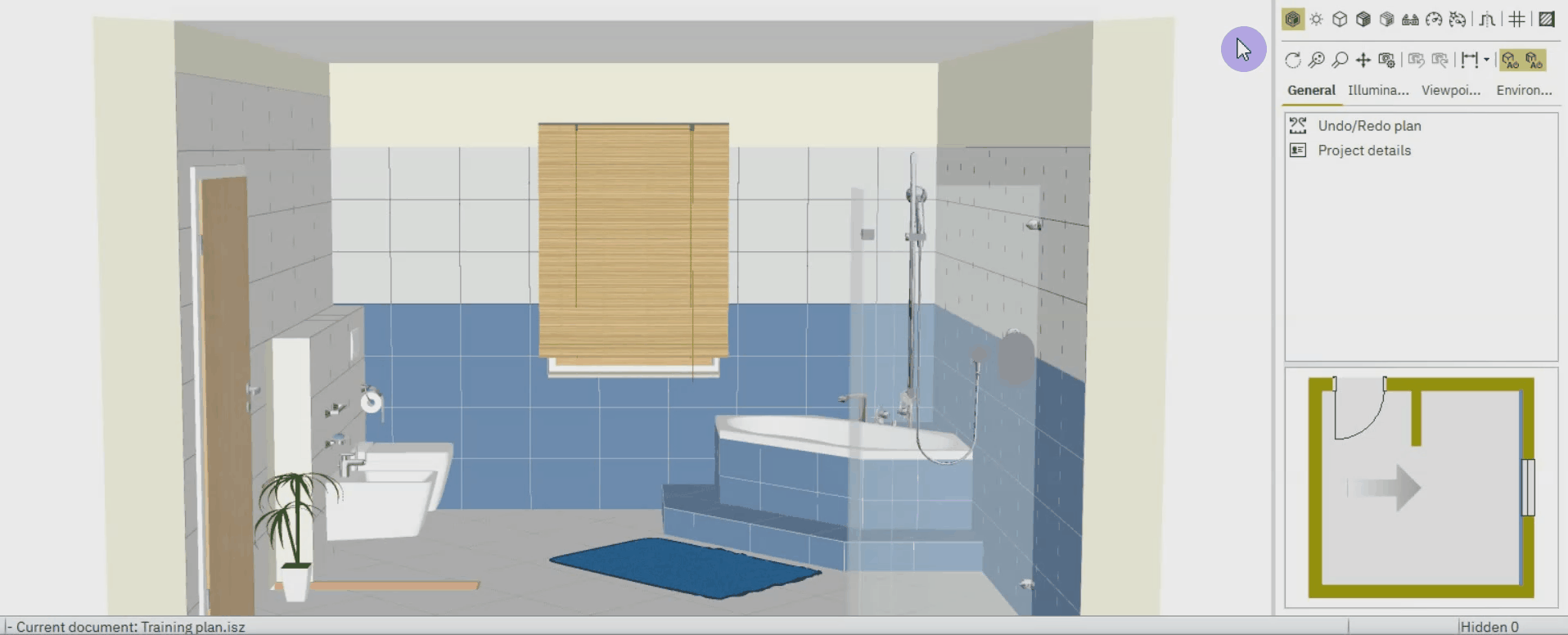

Display modes in 3D view
In 3D view, to select a display mode, left-click the icon. Activated display modes are highlighted in green. Some display modes can be active at the same time, for example, Shaded mode can be active at the same time as High quality, Grid on/off and Movement areas on/off modes.
The display modes in 3D view are:
- Shaded
- Illuminated
- Edges only
- Shaded contour
- Soft contour
- Stereo
- Planning accelerated
- Presentation accelerated
- High quality
- Grid on/off
- Movement areas on/off

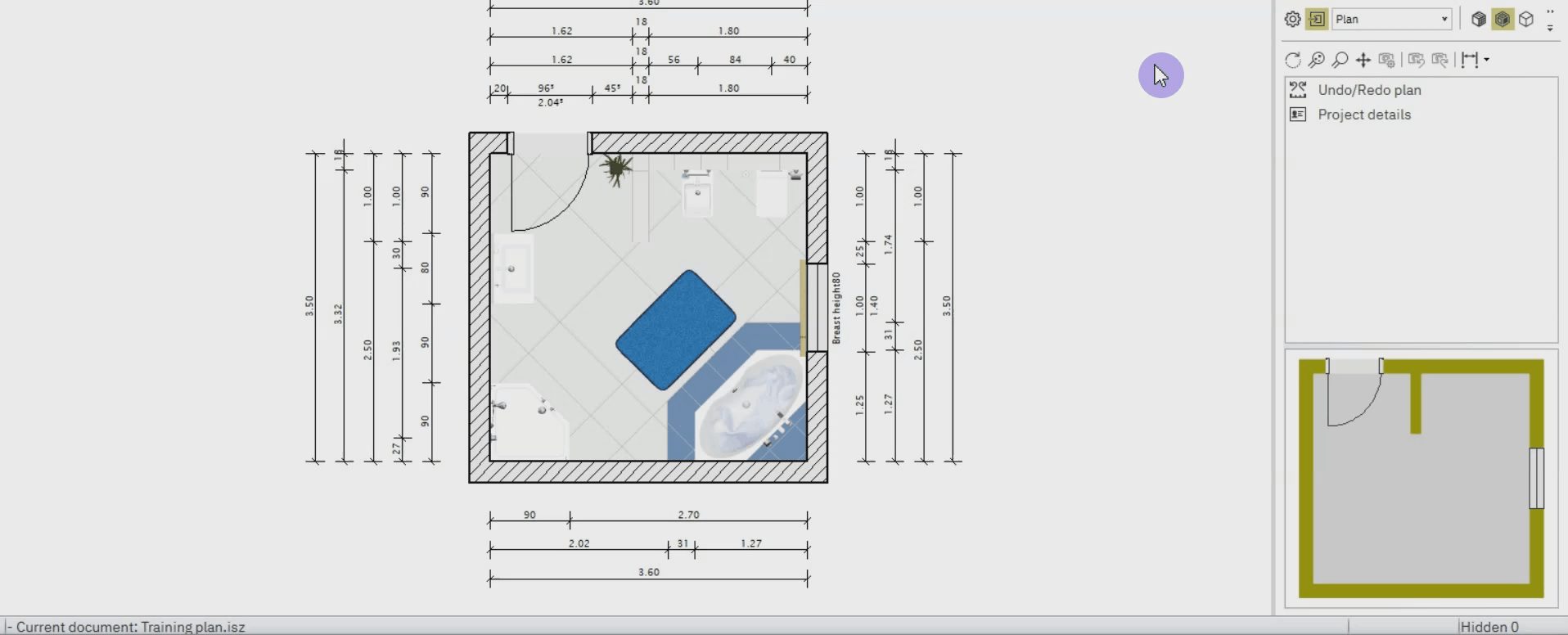

Display modes in 2D view

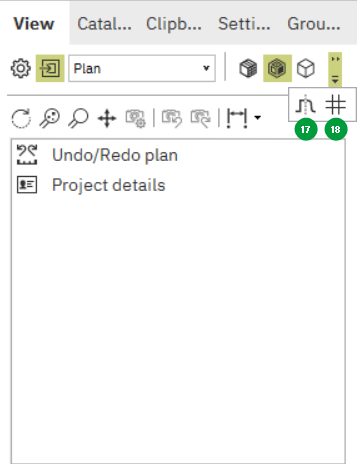

In 2D view, to select a display mode, click the drop-down menu, or left-click the icon. Activate display modes are highlighted in green, or shown as selected in the drop-down menu. Some display modes can be active at the same time, for example, Plan mode can be active at the same time as High quality and Grid on/off modes.
The display modes in 2D mode are:
- Adjust visibility settings
- Set active visibility setting as default
Selectable from the drop-down menu: - Show all
- Plan
- Presentation
- Sanitary
- Tiling
- Dry construction
- Electrics
- Movement areas
- My drawing elements
- Custom dimensions
- High quality
- Grid on/off
