In Innoplus, you can view the movement areas of doors and windows, etc., in 2D view and 3D view and for disabled access. These can be used to estimate how much freedom of movement a customer might have and if any objects have been placed in a way that might restrict their use, allowing you to adjust their position. For example, a washbasin placed too close to a door might put its movement area in the path of the doors opening arc.
2D view
In the assistant box, located to right of your screen, under the View tab:
- Click the Plan drop-down menu and select Movement areas.
3D view
In the assistant box, located to right of your screen, under the View tab:

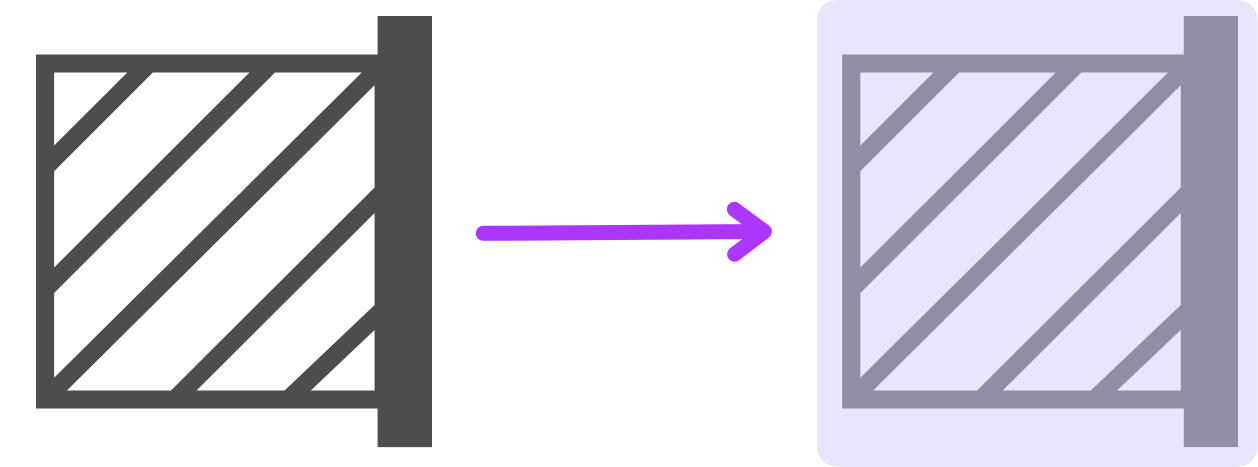

- Click the icon Movement areas on/off. The icon will then be highlighted:
Disabled access
In 2D view or 3D view, in the assistant box, located to right of your screen, under the Settings tab:
- Click the Movement areas drop-down menu and select Areas in case of disability or Areas for wheel-chair usage.
